Doors in curtain walls: 2009 vs 2010

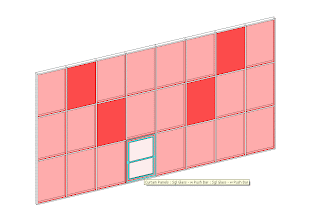

In Revit 2009 if you place a door in a curtain wall it gets categorized as a Curtain Panel, and to select the door you need to highlight and right-click the wall, choose 'Select Panels on Host', and then click the door. Rolling over the door reveals its classification (you can click the image to zoom in):

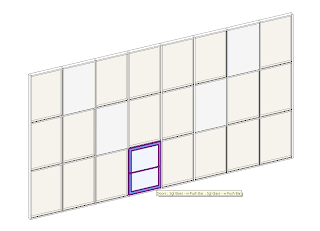

In Revit 2010 however things have changed. A door in a curtain wall is understandably categorized as a Door. And this image shows the same file as previous that was created in 2009 but opened in (and converted to) 2010:
